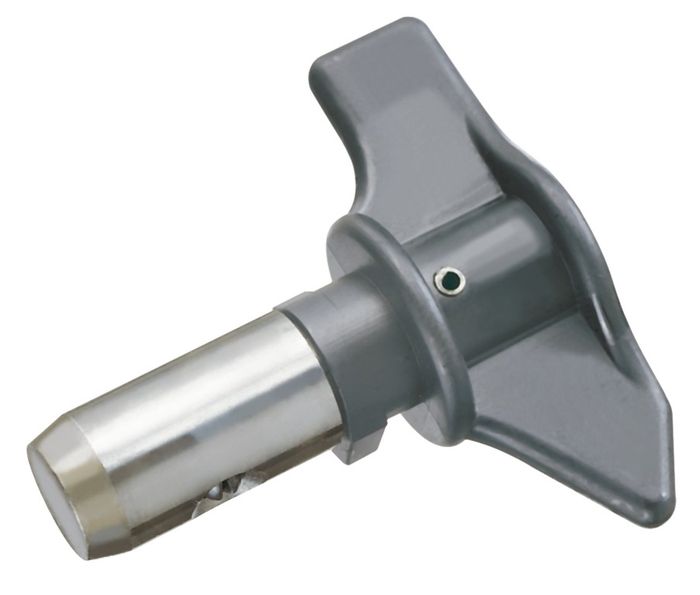

Wagner Tip - L 517

A sprayer tip (nozzle) has a small opening through which paint is forced under pressure. This creates the atomisation necessary for a uniform and quick application of paint, etc.

Tip Wagner L 517 0.017 inch nozzle with a spray width of 25 cm

The first number of a tip shows the width of the spray. Multiply this number by five and it will give you the radius (409 tip = 20 cm). The last two digits indicate the diameter of the nozzle. The lower the number, the smaller the opening of the nozzle and the thinner the fluid to be sprayed must be.

Important! Paint manufacturers also issue job descriptions. These are used to see exactly which tip is recommended for the corresponding paint. It is hard for us to indicate which tip is suitable for each kind of paint.

To be used with the:

• Wagner Project 115
• Wagner ProjectPro 117
• Wagner ProjectPro 119
• Airless Sprayer Plus
• Power Painter 60
• Power Painter 90

Corresponding filter: white L-XXL
Suitable for: varnish, undercoat, primer, filler, interior emulsion paint, tectyl coatings
